“Toluxingâ€specializes in R&D, production and sales of modified refrigerated vehicles, dangerous goods transport vehicles, medical waste transfer vehicles, explosion-proof vehicles and other businesses.

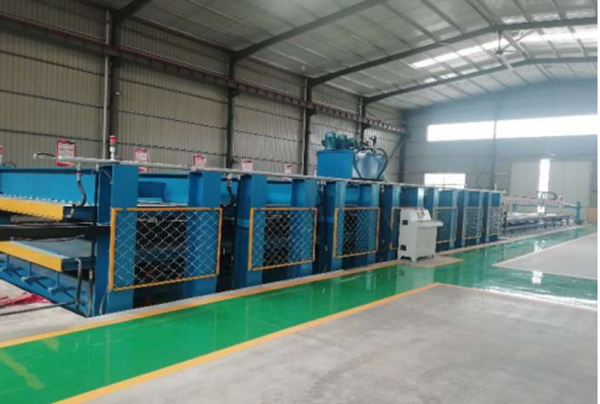

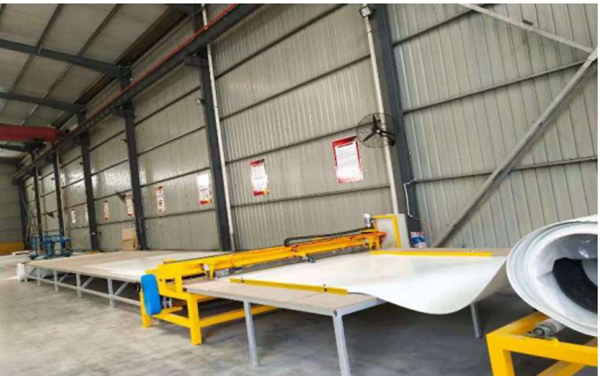

The company has introduced domestic advanced glass fiber reinforced plastic rolling cutting machine, high-end CNC gluing machine, gas rapid heating hydraulic automatic heavy pressure forming equipment. The equipments have high level of automation and advanced technology, and have good social effects and economic benefits. At present, the company has become a strategic franchisee of Beiqi Foton's whole series of cold and fresh cold chain platforms because of its main business of miniature, light and medium refrigerated trucks. It will vigorously improve the transportation level of the cold chain logistics industry as a leader in the cold chain transportation industry, interpret the future prospects of cold chain development, and promote the healthy development of cold chain food safety.
Product features and selling points of Tuoluxing refrigerated trucks

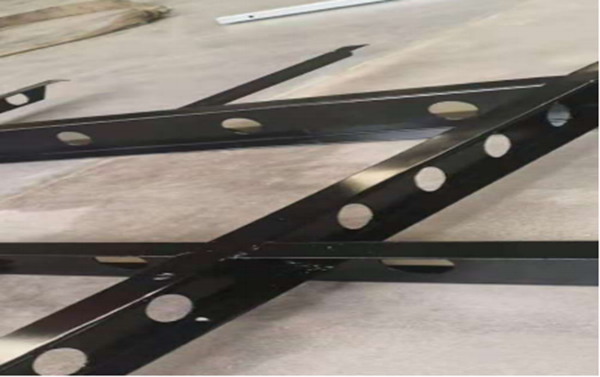

A refrigerated truck consists of a chassis, a cooler, and a box. The chassis is the core, the cooler is the brain, and the box reflects the soul of the whole. The three are indispensable; the refrigeration unit of the refrigerated truck is responsible for providing temperature, and the box is responsible for the temperature. If the refrigeration unit is the supplier of energy, the box will become the storage of energy, and the quality of the box of the refrigerated truck directly affects the service life of the refrigerated truck. The advantages and characteristics of Tuoluxing refrigerated products:Subframe: The beams and longitudinal beams are all made of Q510L steel, which has high strength. The punched longitudinal beam design makes the weight lighter, and the overall strength is not affected by mechanical design. The bottom plate is loaded with built-in treatment to make the appearance more concise; the sub-frame is electrophoresed to enhance corrosion resistance.

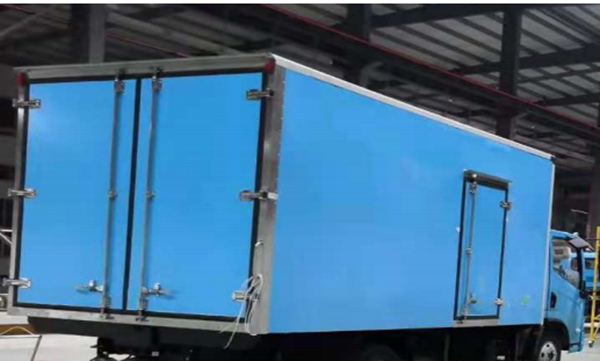

Appearance of the box: food-grade high-quality glass fiber reinforced plastic is used inside and outside, which is resistant to acid and alkali corrosion, has stronger adaptability, and is easier to clean. , PV panels, metal panels are customized.The door locks and fastening screws are all made of 304 stainless steel, and the corners are made of aluminum alloys.

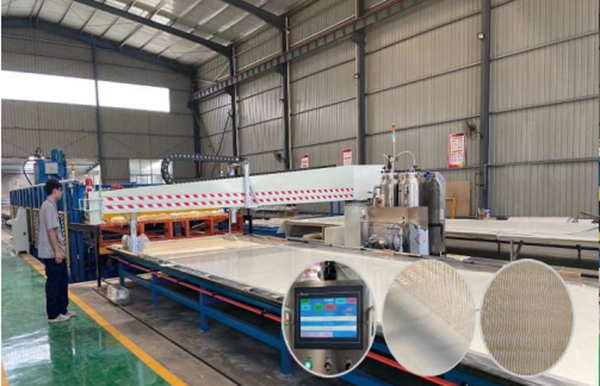

Insulation layer: interlayer insulation is made of polyurethane foam or extruded polystyrene foam.High-quality environmentally friendly materials, B2-level fireproof standard, polyurethane is made of outdoor foaming and cutting, with uniform foaming, high density, high strength, low thermal conductivity. The dry-type board used in the type of box is formed by one-time hot pressing of a high-temperature and high-pressure hot-pressing machine, which blocks the thermal conductivity with the outside air, and has stable thermal insulation performance and reliable use.Adhesion part: For vehicle body assembly, our company has introduced advanced CNC gluing machine equipment, and uses high-strength two-component polyurethane glue to bond the inner and outer skins and insulation layers. The CNC gluing is uniform, the contact area is large, and the sandwich structure after completion, it will automatically enter the gas heating hydraulic automatic heavy pressure forming equipment, and the hot-pressed box board will be formed after 4 hours, and it will be reinforced by bolts.
Airtightness: The fully enclosed block-type building block structure adopted by the box splicing method has uniform force distribution, no air heat conduction phenomenon, no cracks and water seepage in the connection part of the box body, and the back door of the box body adopts multi-layer sealing. The rubber strip completely isolates the air inside and outside the box, and cannot form the internal and external circulation of the air.
Vehilce body structure: The interior of the body is reinforced by drying and dehydrating sycamore pine or larch plywood, which makes the bearing capacity stronger.Vehicle connection: The second-class chassis is connected to the Vehicle body through the sub-frame, and all use 8.8-level reinforcing bolts, which not only ensures the overall performance, but also can be lifted off as a whole.Light weight: The non-metallic materials are used in the structure of the refrigerated box, and the box does not have any metal skeleton to avoid the formation of cold bridges; the exterior of the box is decorated with aluminum alloy edges, and the overall weight of the refrigerated box is 30% lighter than that of metal materials and color steel plate.Corrosion resistance: The inside and outside of the box is made of glass steel plate. The glass steel plate is a hard material that is resistant to acid and alkali, and does not produce any chemical reaction.Anti-aging and long service life: The main components of FRP material are glass fiber and resin cured and synthesized. After solidification, the box has high strength, strong rigidity, high temperature resistance, wear resistance, and easy cleaning; The time of the degradation of the material in the soil is 80-100 years, which guarantees the aging resistance and service life of the material.Easy maintenance: The inside and outside of the box are made of high-strength FRP, and the inside is bonded with polyurethane material. It is made by hot-pressing technology reaction. The structure itself is not easy to be damaged and has high stability.
